AliMed Elbow Turnbuckle Orthosis Turnbuckle Elbow Orthosis, Size A - 52396/NA/NA/A
Product Specification: Turnbuckle Elbow Orthosis, Size A - 52396/NA/NA/A
- Keep the gains you’ve made
- Low-load stretch incrementally increases ROM
- Turnbuckle mechanism provides excellent control, allowing the therapist to adjust force in small increments
Size: Size A

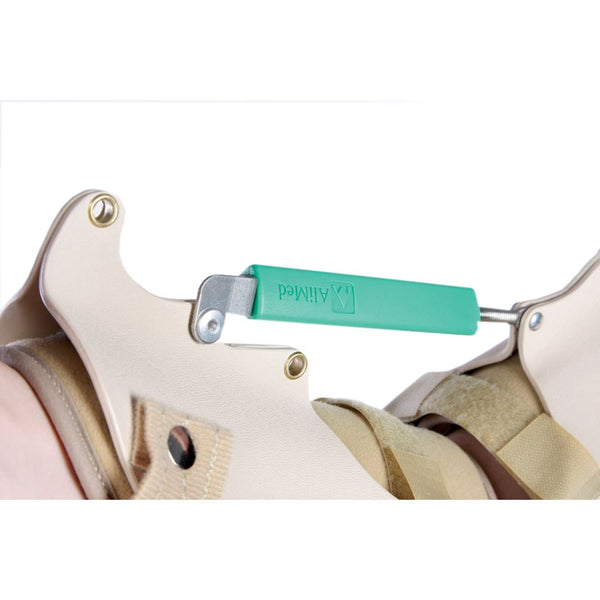

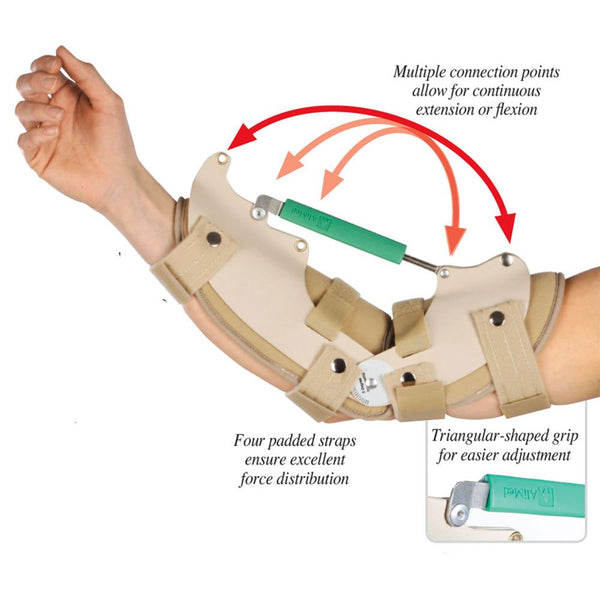

helps maintain the gains in ROM achieved through elbow stretching and brace wear. The steel rod and turnbuckle mechanism in the dynamic elbow splint provide a low-load stretch to the elbow joint to gradually reduce the contracture and progress the range of motion incrementally. The turnbuckle with triangular-shaped grip easily adjusts with splint in place for optimal positioning.

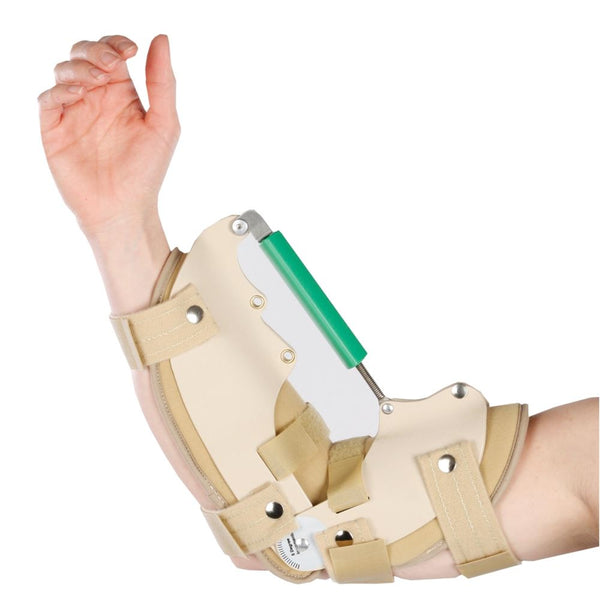

Rigid Kydex splint shell is hinged at the elbow, with the turnbuckle connecting the forearm and upper arm portions of the splint. Heat-adjustable for a custom fit. Two-piece T-Foam padded splint liner conforms for maximum comfort and is removable for hand washing. Elbow splint adjusts from 110º flexion to full extension. Fits left or right arm.
HCPCS Code: E1801. Use of suggested code does not guarantee reimbursement. Check with local DMERC for specific requirements.
Elbow Turnbuckle Orthosis must be used under a physician’s supervision. Specify size when ordering.
Elbow Splint Sizing: Measure circumference at belly of forearm and biceps.
|Size||Overall Length||Forearm|| Biceps |
|A||11-1/4"||8" to 10"||9" to 11"|
|B||14-1/2"||8" to 10"||9" to 11"|
|BB||14-1/2"||10" to 12-1/2"||11" to 13-1/2"|
|C||16-1/4"||10" to 12-1/2"||11" to 13-1/2"|
|D||16-1/4"||12-1/2" to 15"||13-1/2" to 16"|
