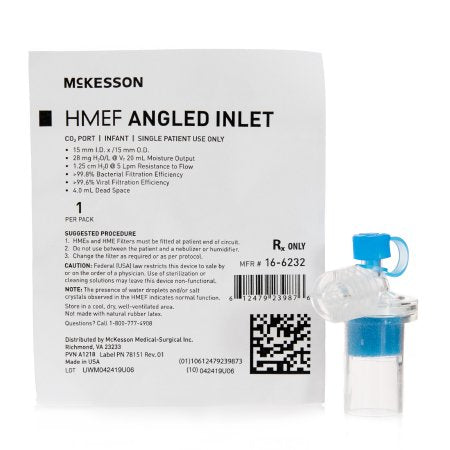

McKesson - Heat and Moisture Exchanger with Filter 28 mg H2O / L @ VT 20 mL 1.25 cm H20 @ 5 LPM - 16-6232

• McKesson Angled Inlet Heat and Moisture Exchanger
• Tidal volume of 20 mL for infant use
• Angled inlet eliminates need for gas sampling elbow
• For short-term airway humidification
• For the moisture and heat retention for return to the patient and provides filtration for prevention of breathing system contamination
• Optimal choice for enhancing the effectiveness of any breathing systems such as ventilators or anesthesia circuits
• Bacterial filtration efficiencies in excess of 99.8%
• Viral filtration efficiencies in excess of 99.6%
• Clear housing to view levels of humidification
• High moisture retention characteristics
• Provide superior moisture output, minimum size, low breathing resistance
• True hygroscopic condensing humidifier (HCH) for maximal performance without potentially harmful chemicals
• Treated with physiologically safe calcium chloride, hygroscopic membrane traps patient’s moisture providing effective airway humidification
• Low resistance to airflow minimizes work of breathing
• Effective filtration reduces the risk of colonization in breathing tubes and minimizes sampling line blockage
• End tidal CO2 sampling port offers convenient access to airway gases
• Luer gas sampling ports for secure connection
• ISO-standard connections for secure, leak-resistant attachment to breathing systems
• Disposable available in convenient case quantities and individually-wrapped for single patient use
• Not Made with Natural Rubber Latex
• 1 Per Pack, 25 Packs Per Case

Stock Number : 1109631

Manufacturer # : 16-6232

Brand : McKesson

Manufacturer : McKesson Brand

Country of Origin : Mexico

Application : Heat and Moisture Exchanger with Filter

Connection Type : 15 mm I.D. x 15 mm O.D. Port

Dead Space : 4.0 mL

Filter Efficiency BFE : 99.8%

Filter Efficiency VFE : 99.6%

Filter Type : Hygroscopic

Moisture Output : 28 mg H2O / L @ VT 20 mL

Port Type : Gas Sampling Port

Resistance : 1.25 cm H20 @ 5 LPM

Sterility : NonSterile

Style : Angled

UNSPSC Code : 42272219

User : Infant

Volume : 20 mL

Latex Free Indicator : Not Made with Natural Rubber Latex

HMEF, ANGLED INLET INF (25PK/CS)
