SecureFit TPS Trendelenburg Positioning System SecureFit TPS - 938040

Product Specification: SecureFit TPS - 938040

Product Description

• Positioning system for all procedures requiring Trendelenburg
• Adjustable, secure design
• Set up in less than a minute
• Offers open access to the chest
• Unique TPS Gel Pad surface technology cradles patient using the curve of the back for minimal slipping

To view a video of the SecureFit TPS, click here.

Learn more about The Safety and Effectiveness of SecureFit:

View the Poster Presentation: Safety and Effectiveness of SAF-R, a Novel Patient Positioning Device for Robot-assisted Pelvic Surgery in Trendelenburg Position

View the Product Brochure

View the SlideShare

Additional Details

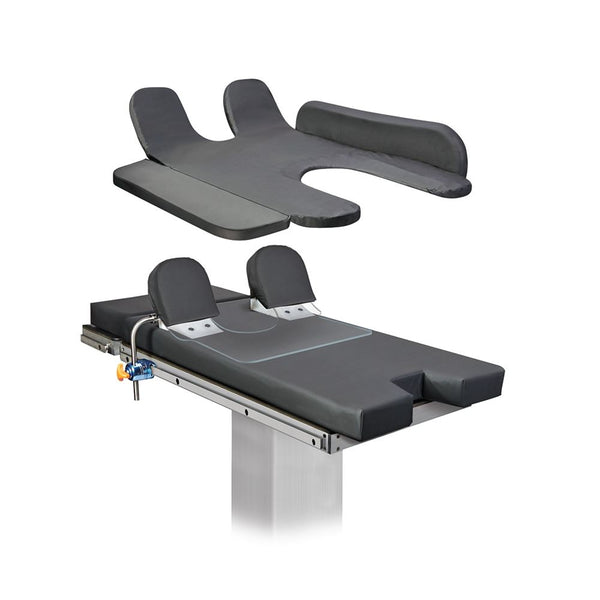

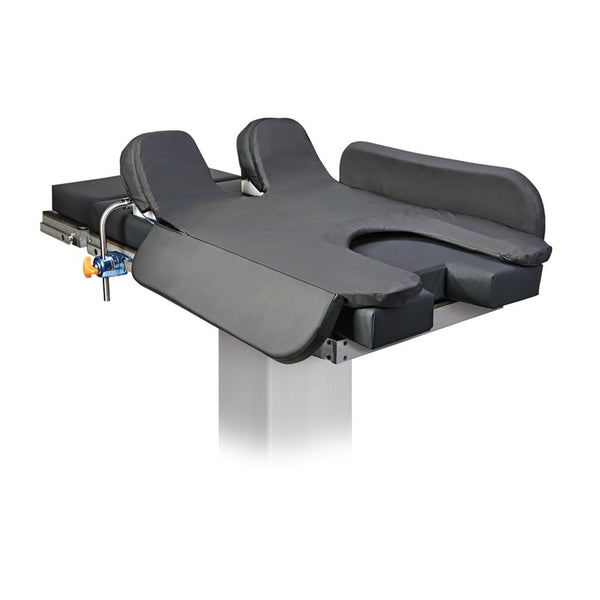

delivers a simple, safe and secure way to position patients for Trendelenburg procedures. Offering a dramatically reduced set-up time, SecureFit is uniquely contoured to cradle patient’s natural curvature, and the independent gel-encased cubes deliver maximum pressure redistribution and support, with minimal slipping. Stabilizer Wedges and Posts securely lock the TPS onto the surgical table, while Wedge Pads minimize the incidence of poor blood flow to the shoulder. In addition, design enables full access to the abdomen and chest wall. Secure Fit TPS is a reusable system that fits all standard-width tables. It includes TPS arm supports and toboggans to simplify IV access. Best suited for the following procedures: Laparoscopic, Open and Robotic where Trendelenburg is used.

TPS Foundation: 20"W x 17"L x 6"H • Aluminum construction
TPS Gel Pad: 22-1/2"W x 39"L x 1-1/2" thick (1" gel surface with 1/2" polyfoam base • Perineal cutout: 9"W x 13"L
Arm Pads: 25"L x 4-1/2"H polyfoam pads
TPS Stabilizing Wedge Pads: 1" Memory Foam over polyfoam
Cover: Black antishear elastic • Antimicrobial • Fluid-proof fabric • Fluid-resistant sewn seams • CAL 117 compliant
Stabilizing Posts: 9-1/4"L x 5/8" diameter • Stainless steel
Toboggans: 10"L x 8"H x 10-1/4"D • Patent #9,283,133

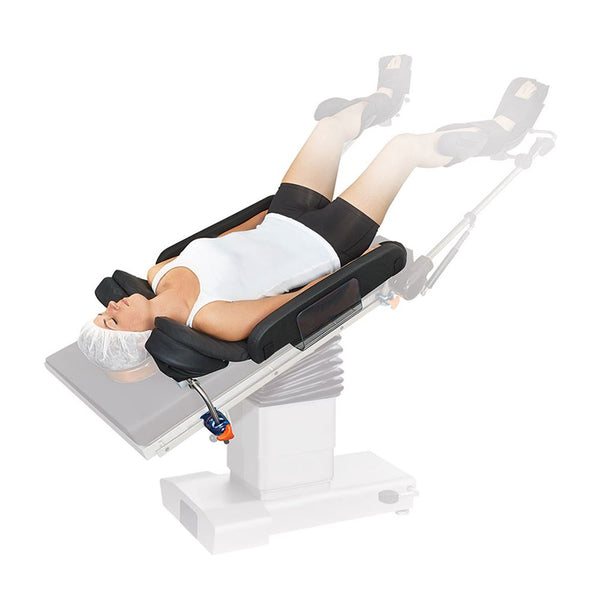

When the patient is placed in Trendelenburg, the upper back support follows the curve of the back over the patient’s scapula. This helps to distribute the pressure from body weight over a larger area on both sides and prevents high focal pressures over the shoulders. The upper back supports cover all the way from tip of scapula to the acromion process but not the acromioclavicular joint which helps to prevent pressure transduction to the joint and subsequent compression of the nerve tracts traveling under it.
